floating drone

  • PREX9-Q20

    The sturdy body supports stable flight with aluminum plates and square carbon tubes.

    prex9-q20 greeting
    Quadcopter icon

    Quadcopter

    Foldable Body icon

    Foldable Body

    Water Resistant icon

    Water Resistant

    FPV Camera/
LED Light icon

    FPV Camera/ LED Light

    Liquid/Fertilizer icon

    Liquid/Fertilizer

    Expandability icon

    Expandability

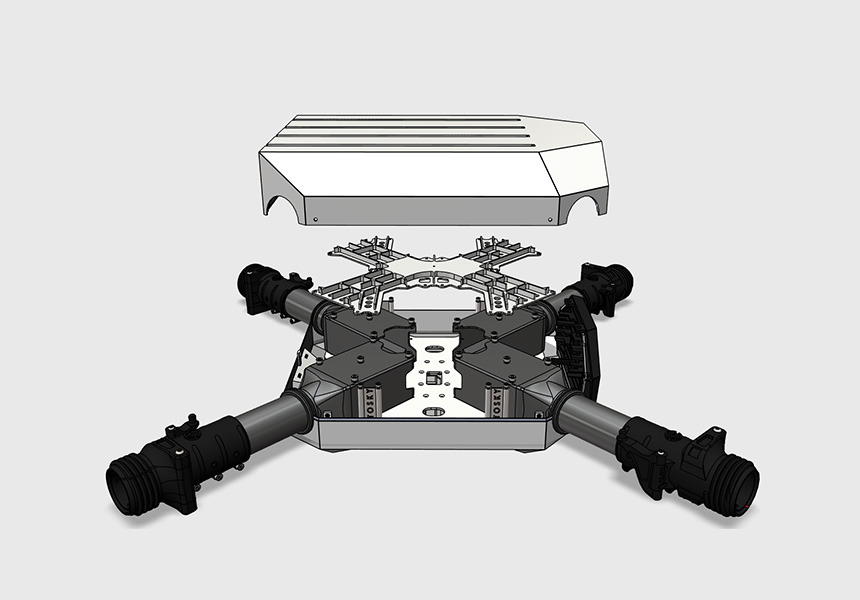

    Sturdy Frame

    Aluminum plates and square carbon tubes are applied The sturdy and solid frame is resistant to impact.

    prex9-q20 detail 01

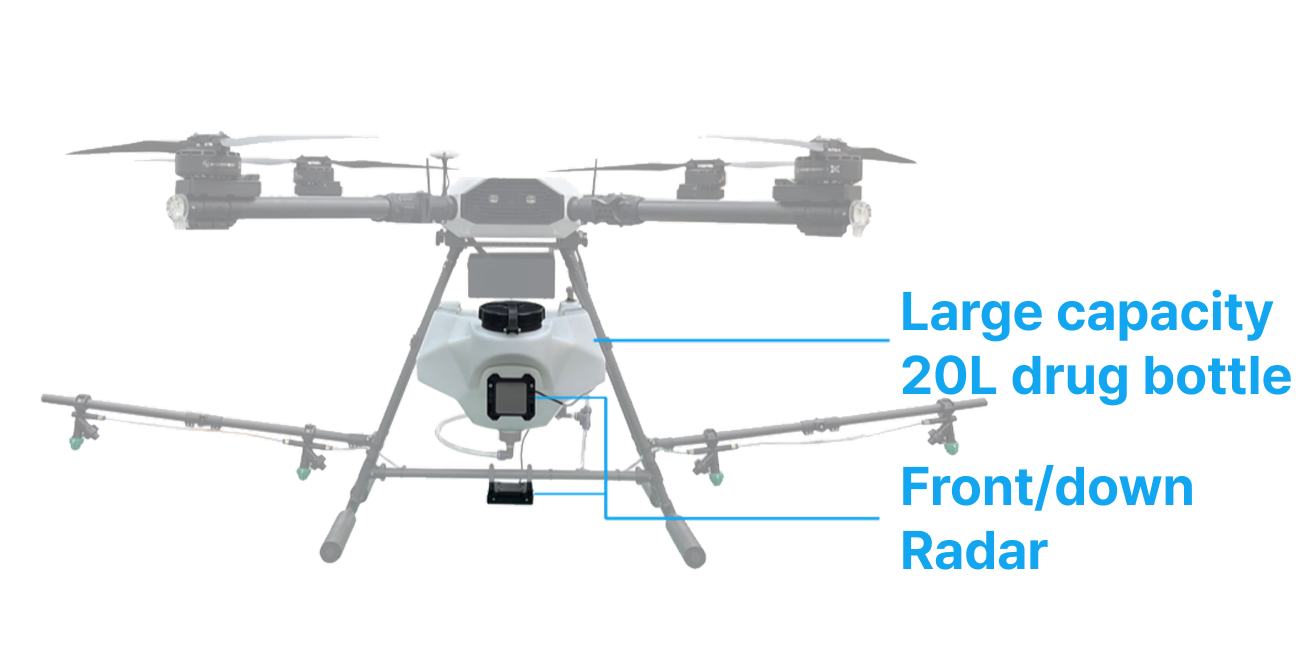

    Enhanced Safety

    A large-capacity 20L pesticide tank allows for approximately 1.6ha of spraying per use. Front and bottom radars are installed for secure and stable flight.

    prex9-q20 detail 02

    Expandability

    Mission equipment can be easily replaced for various purposes.

    prex9-q20 expand 01

    Pesticide Spraying Device

    prex9-q20 expand 02

    Granular Spreading Device

    prex9-q20 expand 03

    Pollen Spreading Device

    Waterproof & Dustproof

    The aerodynamically designed white canopy prevents the penetration of dust and fertilizer, and can be cleaned with water to maintain a clean state.

    prex9-q20 detail 03
    prex9-q20 detail 04

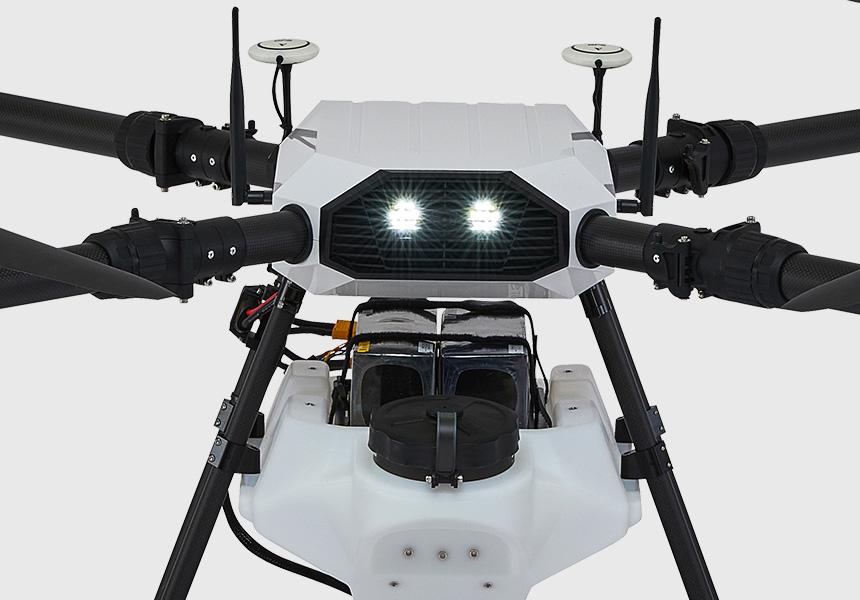

    FPV Camera & LED Light

    The FPV Camera allows real-time monitoring of spraying footage, and the high-brightness LED Light ensures visibility during sunrise and sunset for safe landing. It is also located inside the canopy grill to protect it from external impacts.

    Specifications by Model

    prex9-q20 resource 01

    PREX9-Q10

    Size (Unfolded)

    1080mm * 1080mm * 720mm

    Motor

    Hobbywing X9

    Propeller

    34 inches

    Effective Payload

    10kg (10L)

    Maximum Takeoff Weight

    24.9Kg

    prex9-q20 resource 02

    PREX9-Q20

    Size (Unfolded)

    1919mm * 1917mm * 765mm

    Motor

    Hobbywing X9

    Propeller

    34 inches

    Effective Payload

    20kg (20L)

    Maximum Takeoff Weight

    43Kg

    prex9-q20 resource 03

    PREX9-X8

    Size (Unfolded)

    1180mm * 1180mm * 720mm

    Motor

    Hobbywing X8

    Propeller

    30 inches

    Effective Payload

    10kg

    Maximum Takeoff Weight

    24.9Kg

    prex9-q20 model 01
